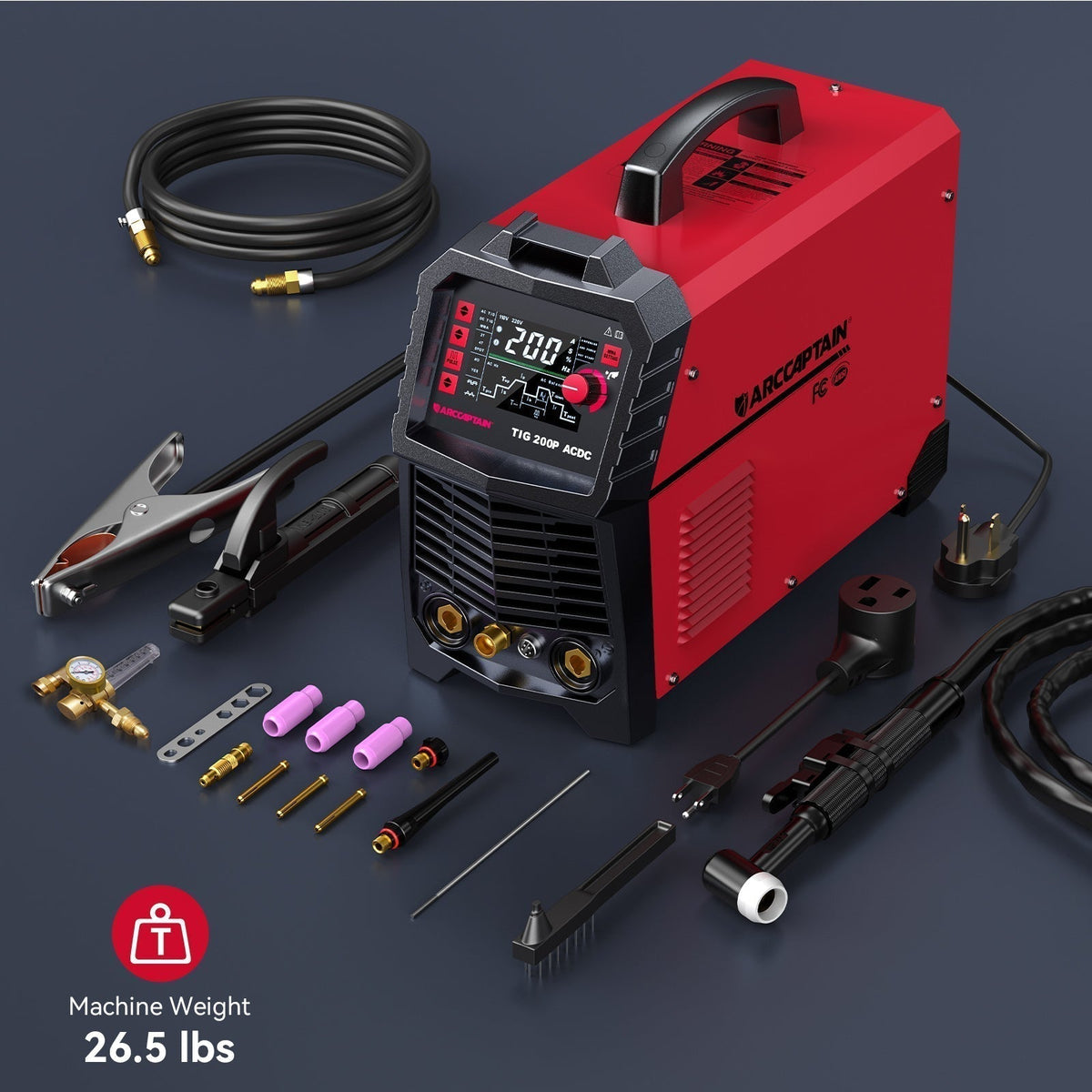

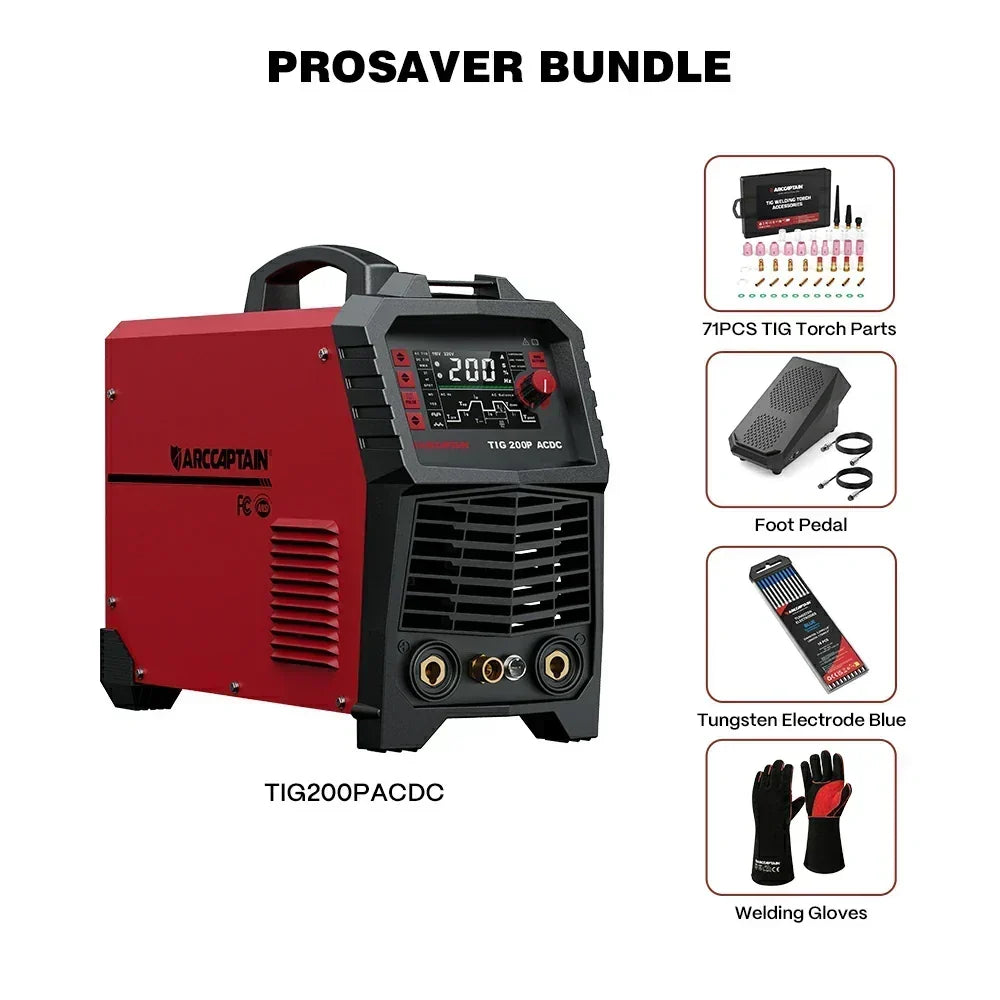

Arccaptain TIG200P AC DC TIG Welder ProSaver Bundle

Project Name

Unit

Value

Power voltage

VAC

AC110V±15%

AC220V±15%

Input frequency

Hz

50

Rated input current

A

33@TIG 35@MMA

Capacity of power supply

KVA

6.0@TIG 7.5@MMA

Output current range (TIG)

A

10~120(110 v)

10~200 (220v)

Output current range (MMA)

A

10~110(110v)

10~160(220v)

Arc force range

A

0~40

Hot start current range

A

0~80

No-load voltage

V

60

Rated working voltage

V

18@TIG 26.4@MMA

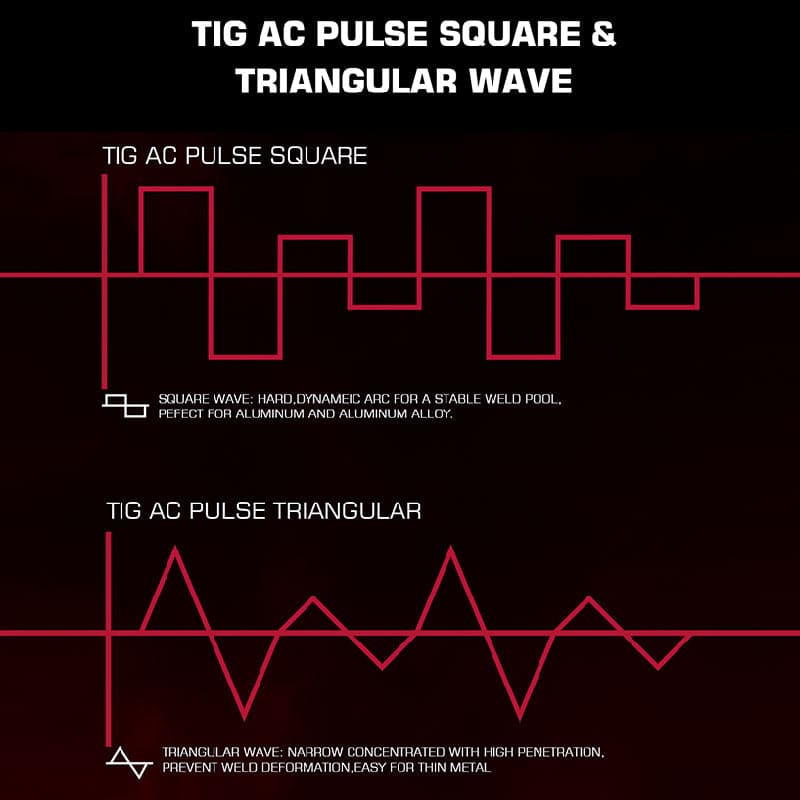

AC output frequency

Hz

20~250

AC balance

%

20~60

Background level

A

10~200

Pulse frequency

Hz

0.5~200 (DC)

0.5~25(AC)

Pulse duty factor

%

5~95

Pre-flow time

S

0~5

Post-flow time

S

0~15

Rising time

S

0~15

Fall time

S

0~15

Remote control

-

Yes

Arc start mode

-

HF arc starter

Efficiency (%)

%

80

Duty cycle (%)

%

TIG: 200@25% -

MMA: 160@25%

Power factor

-

0.70

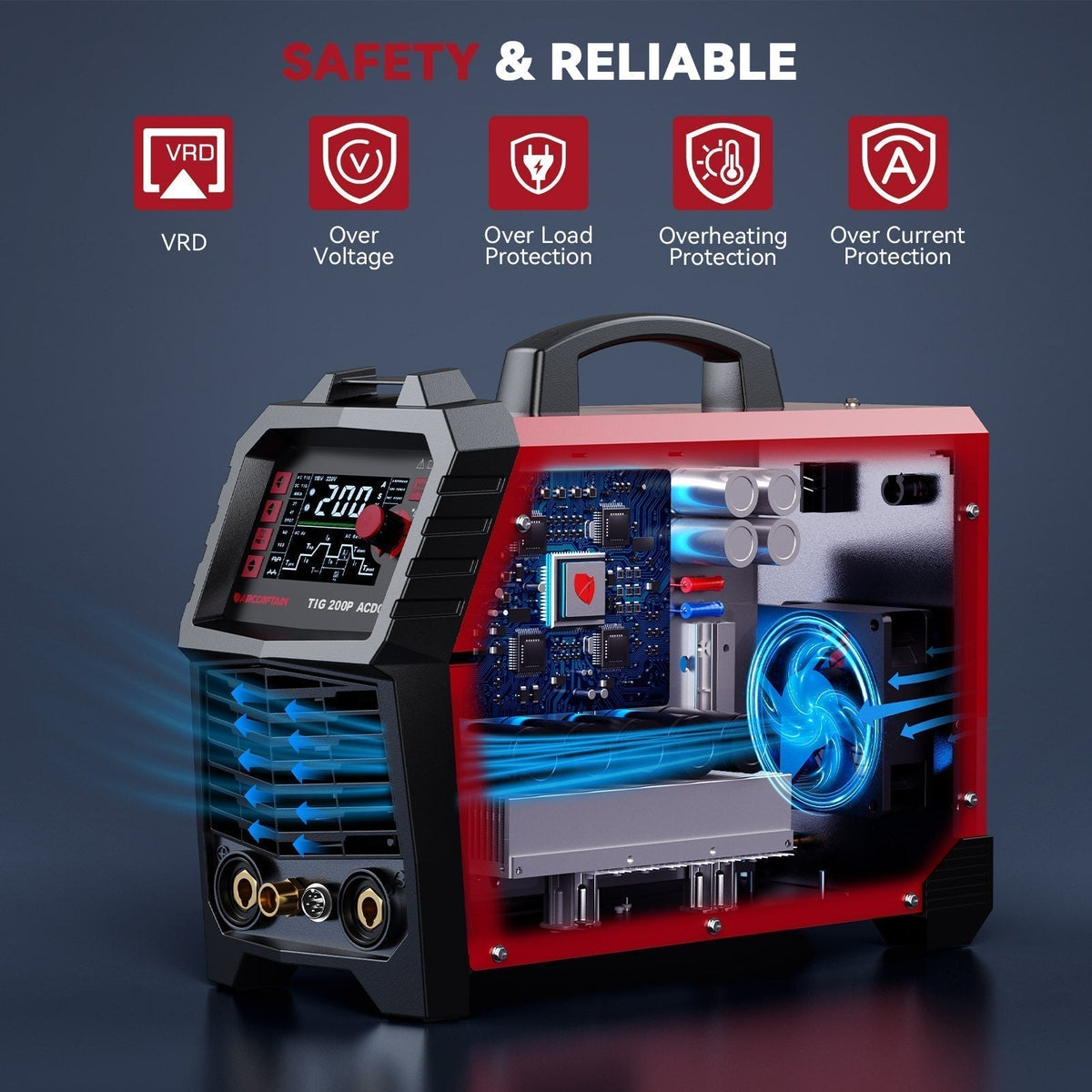

Type of cooling

-

Air cooled

Working temperature range

°C

-10~+40

Storage temperature range

°C

-25~+55

Protection class

-

IP21S

Insulation class

-

B
