ER4043 Aluminum TIG Welding Rod 5LB TIG Filler Rod
ER4043 Aluminum TIG Welding Rod 5LB TIG Filler Rod
Regular price
$35.99
Regular price
$35.99
Sale price
$49.99
Unit price
per
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
ER4043 Aluminum TIG Welding Rod 5LB TIG Filler Rod
Regular price
$35.99
Regular price
$35.99
Sale price
$49.99
Unit price
per
Compatible Aluminum Alloys for ER4043
| Aluminum Alloy | Typical Applications | ER4043 Compatibility |
|---|---|---|
| 6061-T6 / 6061-T651 | Structural frames, extrusions, bike frames | Best Choice |
| 6063 | Architectural tubing, window frames | Best Choice |
| 3003 / 3004 | Sheet metal, tanks, cookware | Recommended |
| 5052 | Marine sheet, general fabrication | Works Well |
| Casting Alloys (355, 356, 214, 43) | Cast aluminum repair | Recommended |
| 5083 / 5086 / 5456 | Marine structural, high-magnesium alloys | Use ER5356 Instead |
ER4043 vs ER5356 — Which Aluminum Filler Rod Should You Choose?
| Feature | ER4043 — This Product | ER5356 |
|---|---|---|
| Best For | 6061, 6063, 3xxx series, aluminum castings | 5xxx series, marine, structural applications |
| Weld Pool Control | Smooth and fluid, easy to control | Slightly thicker weld pool |
| Hot Crack Resistance | Excellent for 6xxx alloys | Lower when welding 6xxx alloys |
| Weld Appearance | Bright, smooth, shiny finish | Slightly dull or frosty appearance |
| After Anodizing | Weld area may appear darker | Better color match with base metal |
| High-Temp Service (>150°F / 66°C) | Acceptable | Not recommended |
| Tensile Strength | ~186 MPa | ~241 MPa (Higher strength) |
ER4043 Aluminum TIG Filler Rod Specifications
| Specification | Details |
|---|---|
| AWS Classification | ER4043 · AWS A5.10 / ASME SFA A5.10 |
| Also Known As | AlSi5 · 4043 Aluminum Filler Rod |
| Silicon Content (Si) | 4.5 – 6.0% |

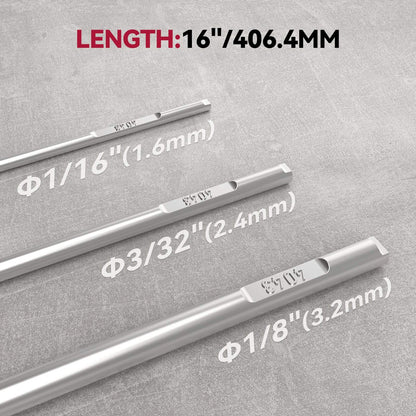

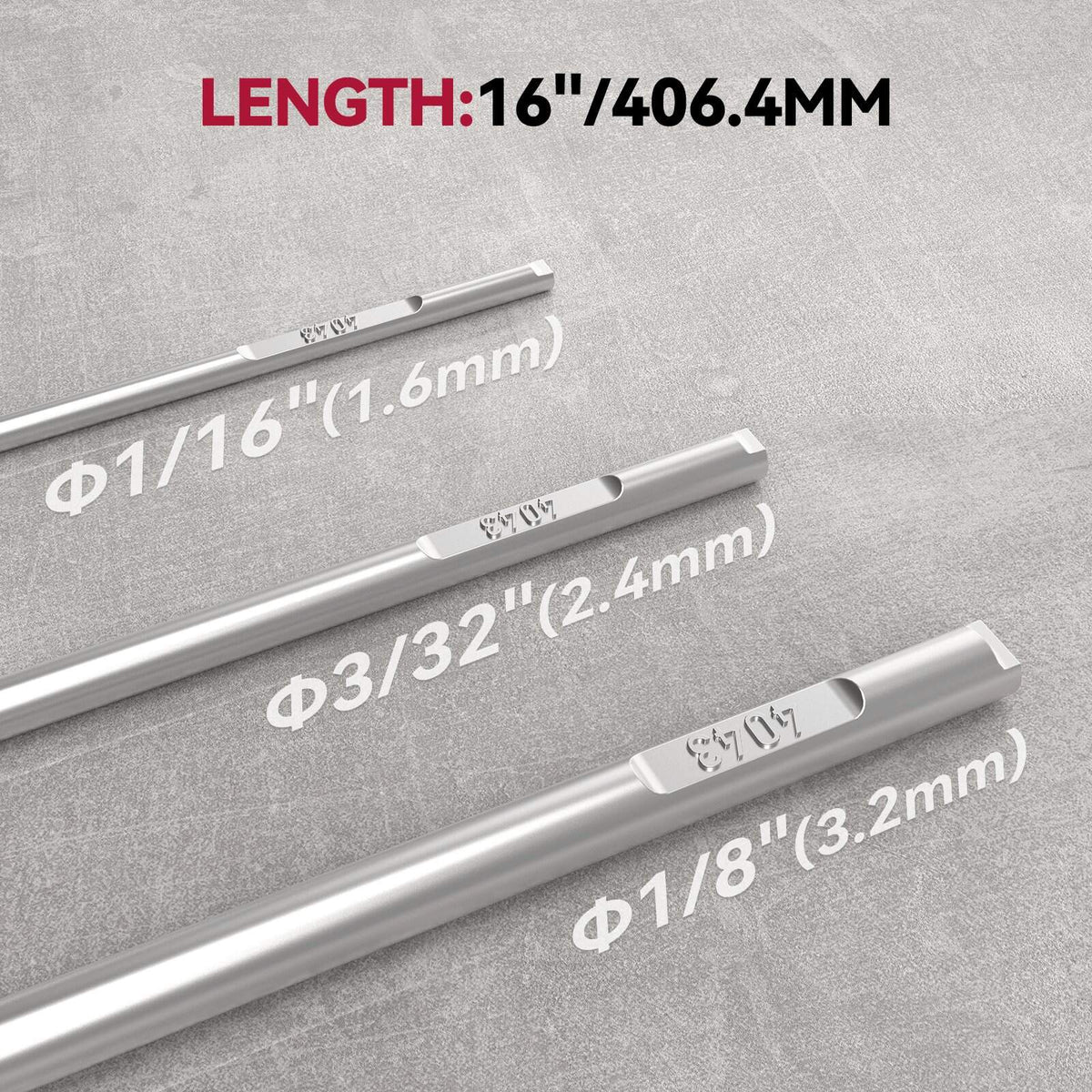

| Available Diameters | 1/16" (1.6 mm) · 3/32" (2.4 mm) · 1/8" (3.2 mm) |
| Rod Length | 16 in (406 mm) |
| Package Weight | 5 lb |
| Shielding Gas | 100% Argon · Argon/Helium Mix |
| Welding Process | GTAW (TIG Welding) |
| Storage Recommendation | Store in sealed plastic tube and keep dry |
