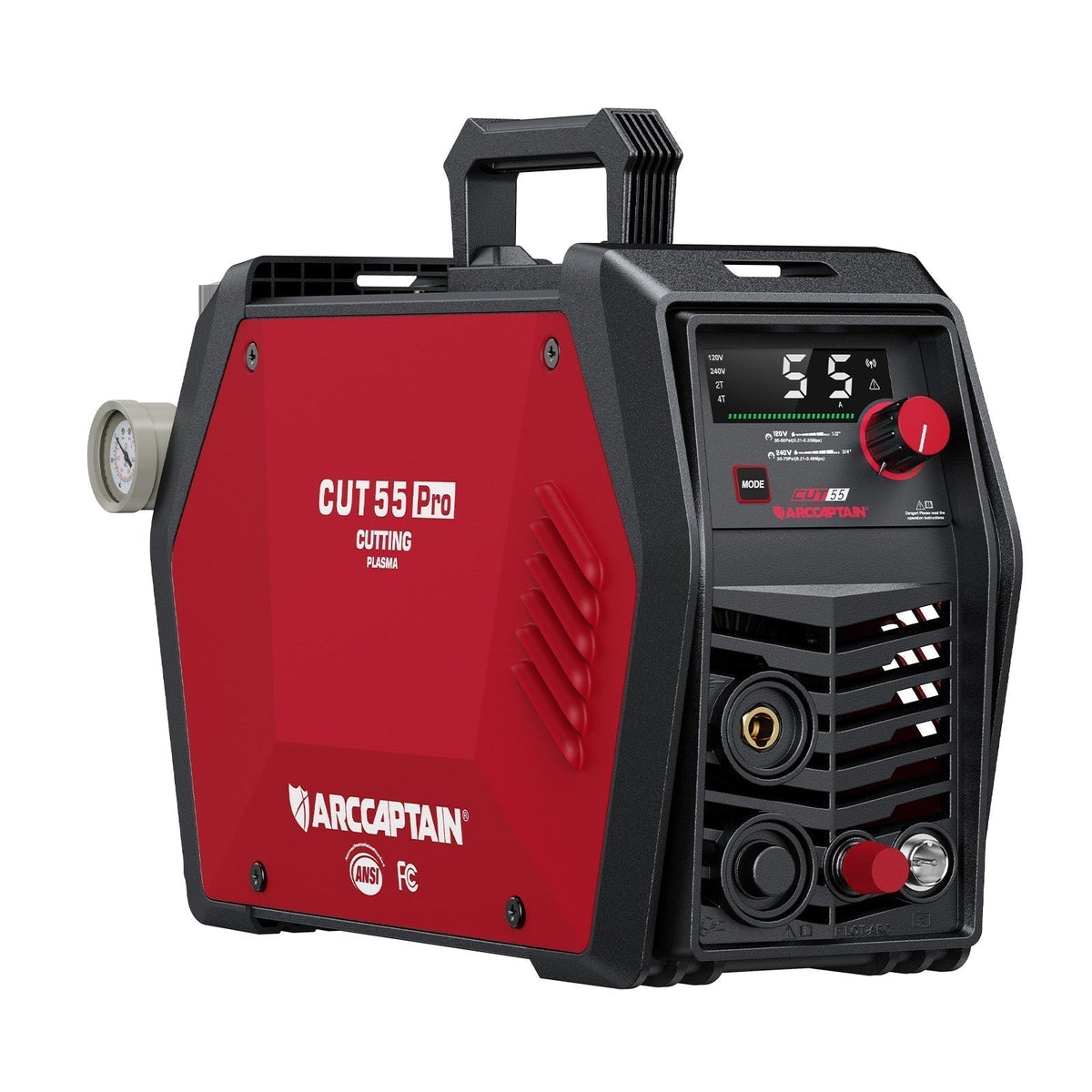

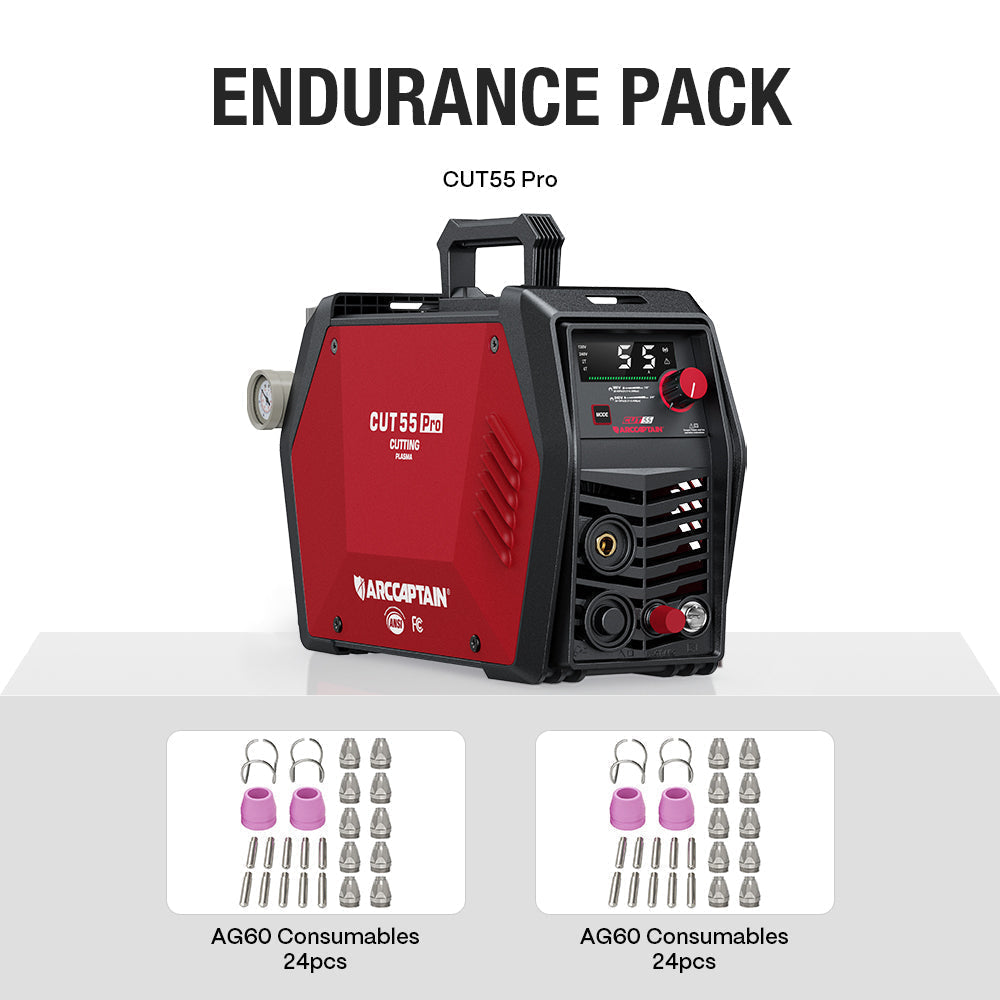

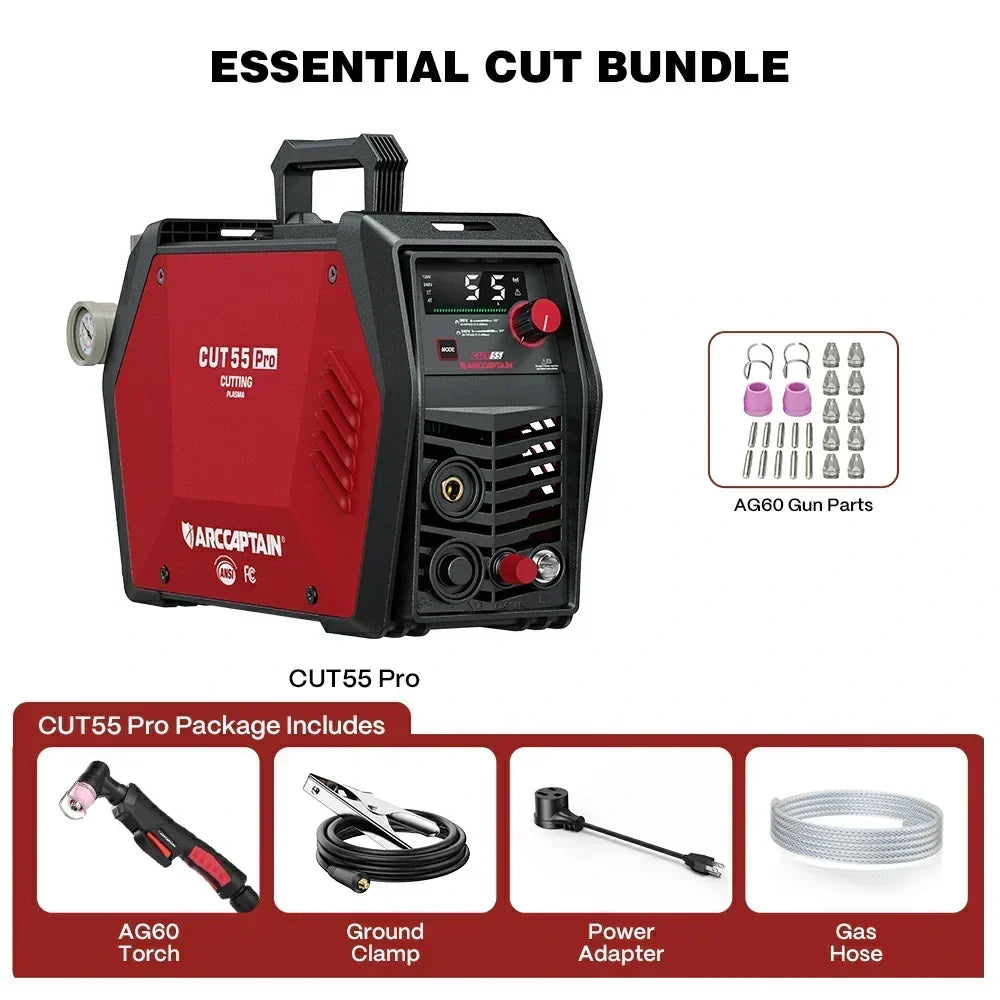

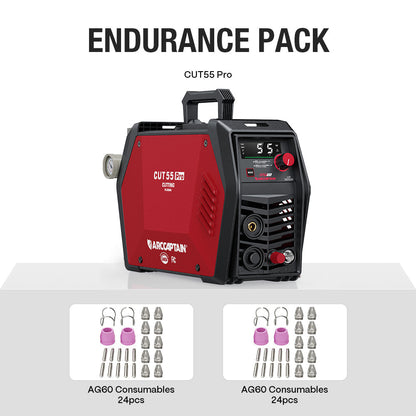

Arccaptain CUT55 Pro Dual Voltage Plasma Cutter
ARCCAPTAIN CUT55 Pro Plasma Cutter: Power, Precision, and Smart Control
The ARCCAPTAIN Cut55 Pro Plasma Cutter is built to handle tough cutting jobs with ease, slicing through materials up to 1/2 inch thick and achieving maximum cuts of 12/16" inch. Whether you're working on clean or rough surfaces, this tool delivers precision and efficiency every time.
Features:

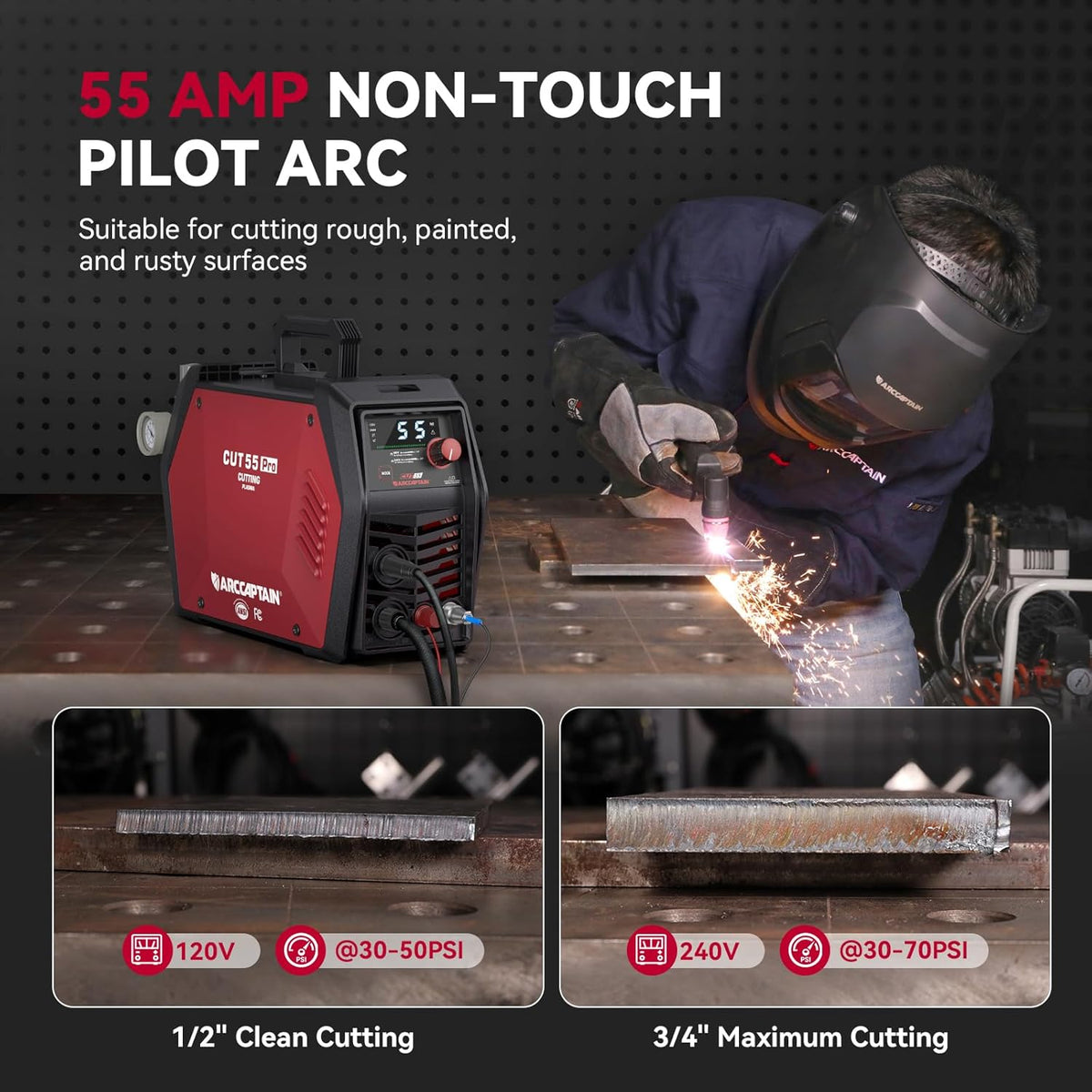

- Pilot Arc Technology: Starts the arc without direct contact, making it perfect for cutting through dirty, rusty, or coated steel while maintaining clean, high-quality results.

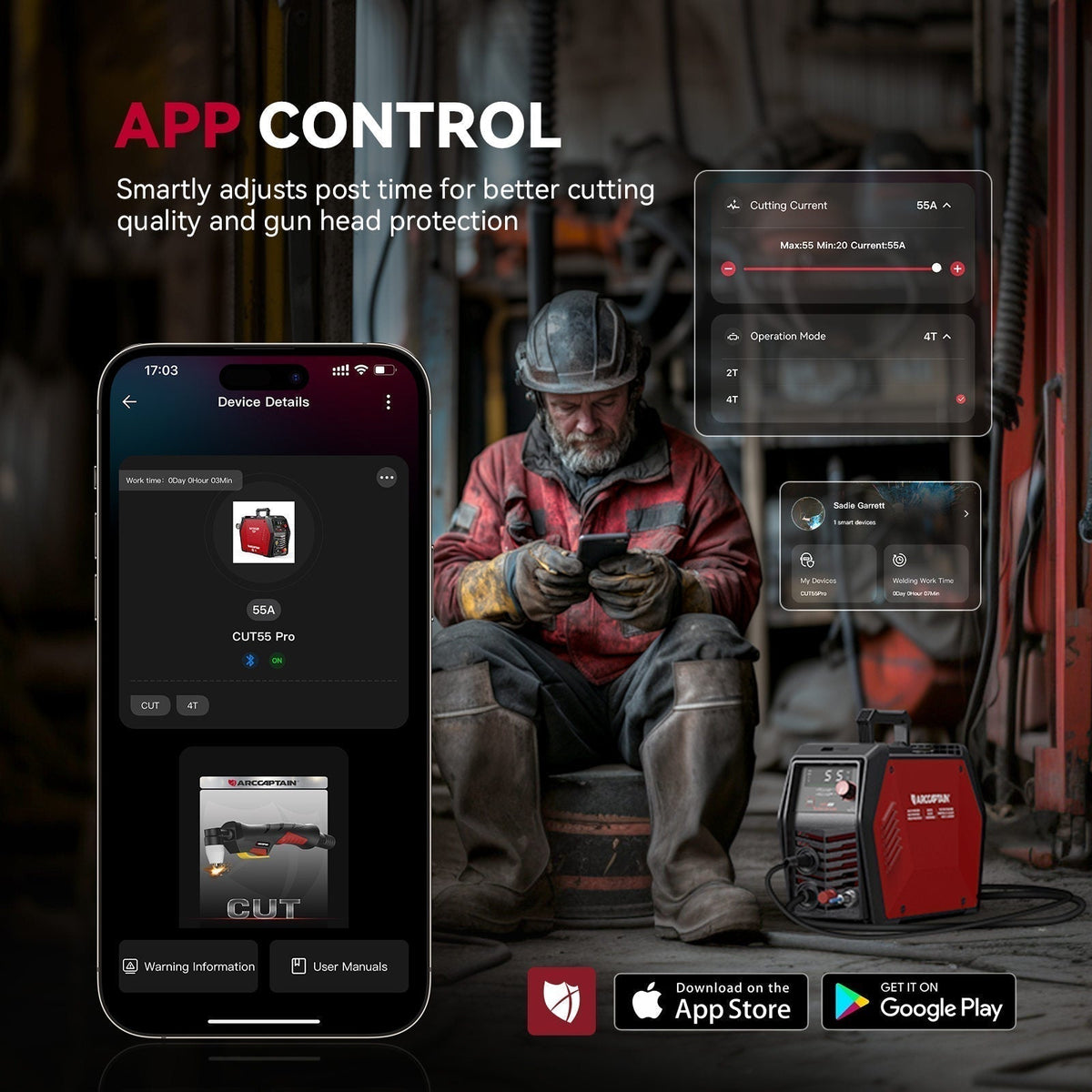

- Bluetooth App Connectivity: Control and maintain your machine with ease. The app allows for firmware updates, ensuring peak performance and stability over time—ideal for both beginners and pros.
- 2T/4T Modes: Switch between quick cuts and continuous operation for maximum flexibility.

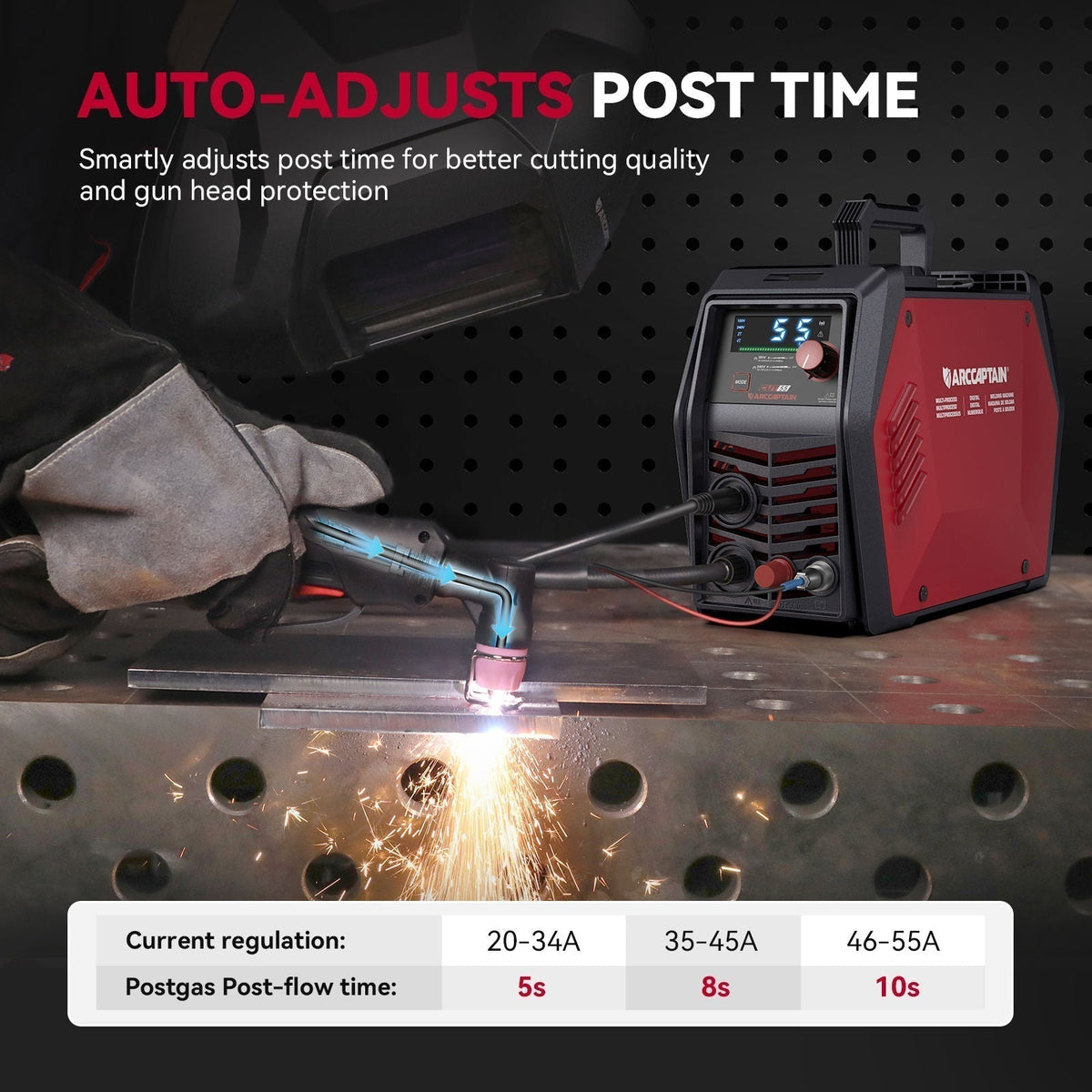

- Smart Post-Flow Function: Automatically adjusts cooling based on cutting current, reducing wear and tear and extending the machine’s lifespan.

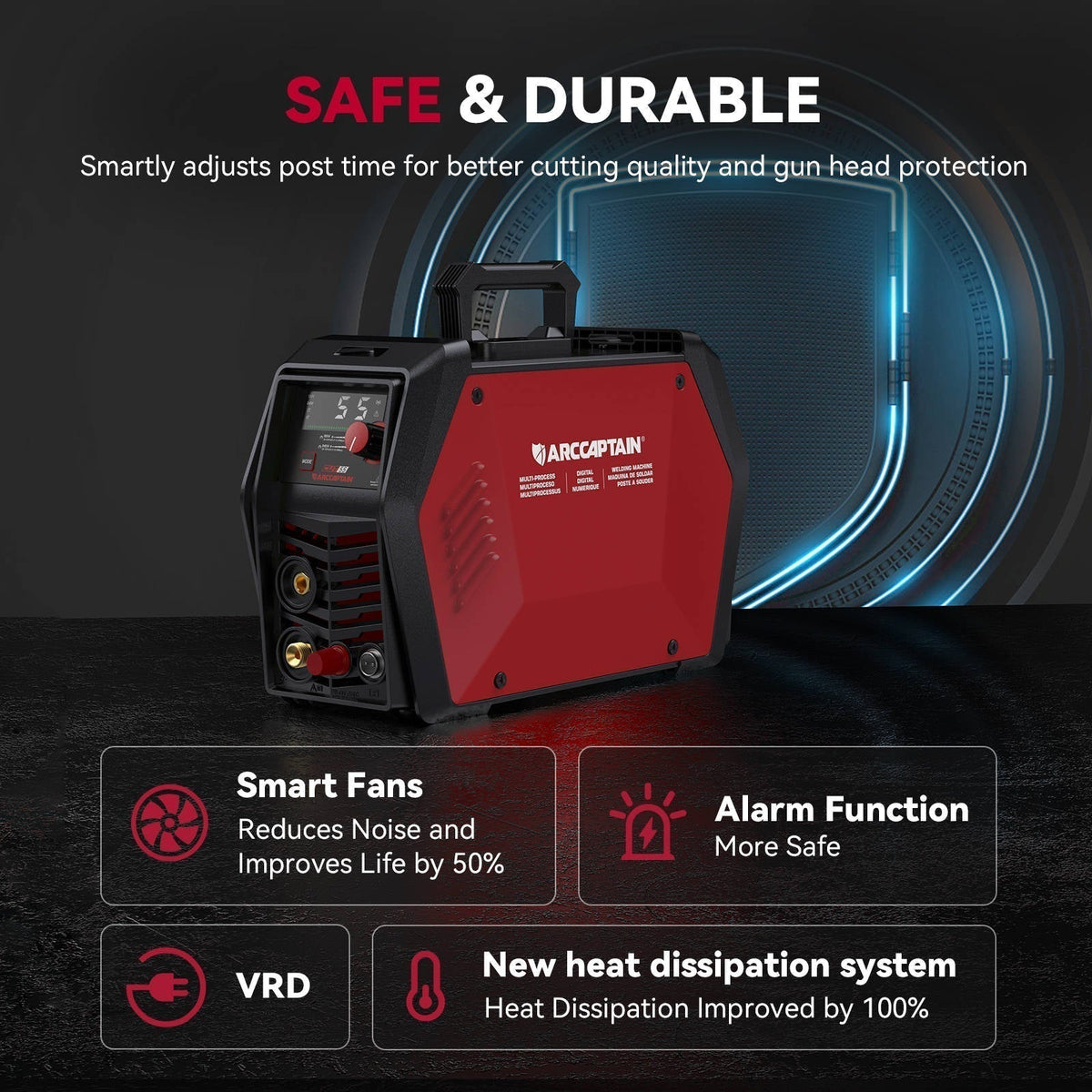

- Durable & Safe Design: Equipped with an intelligent fan and advanced cooling system to prevent overheating. Triple protection against water, dust, and corrosion reduces failure risk by up to 70%, ensuring long-lasting reliability.
The Cut55 Pro combines cutting-edge technology, durability, and smart features to make it the ultimate tool for any metalworking project.
Technical parameters
| Model | CUT55 Pro | |
| Rated input power supply | AC 220V | AC 120V |
| Rated input capacity (kVA) | 9.4 | 5.5 |
| Power factor | 0.7 | |
| Rated output (A/V) | 55/102 | 35/94 |
| Rated duty cycle (%) | 60 | 60 |
| No-load voltage (V) | 330V | |
| Output current range (A) | 20~55 | 20~35 |
| Arc ignition mode | Poilt ARC/ NON-Touch | |
| Post-flow time (s) | 5 | |
| Gas pressure range (Mpa) | 0.2~0.5Mpa 29~72psi | |
| Insulation grade | H | |
| Cooling mode | Air cooling | |
| Enclosure ingress protection | IP21S | |
| Efficiency (%) | 85 | |

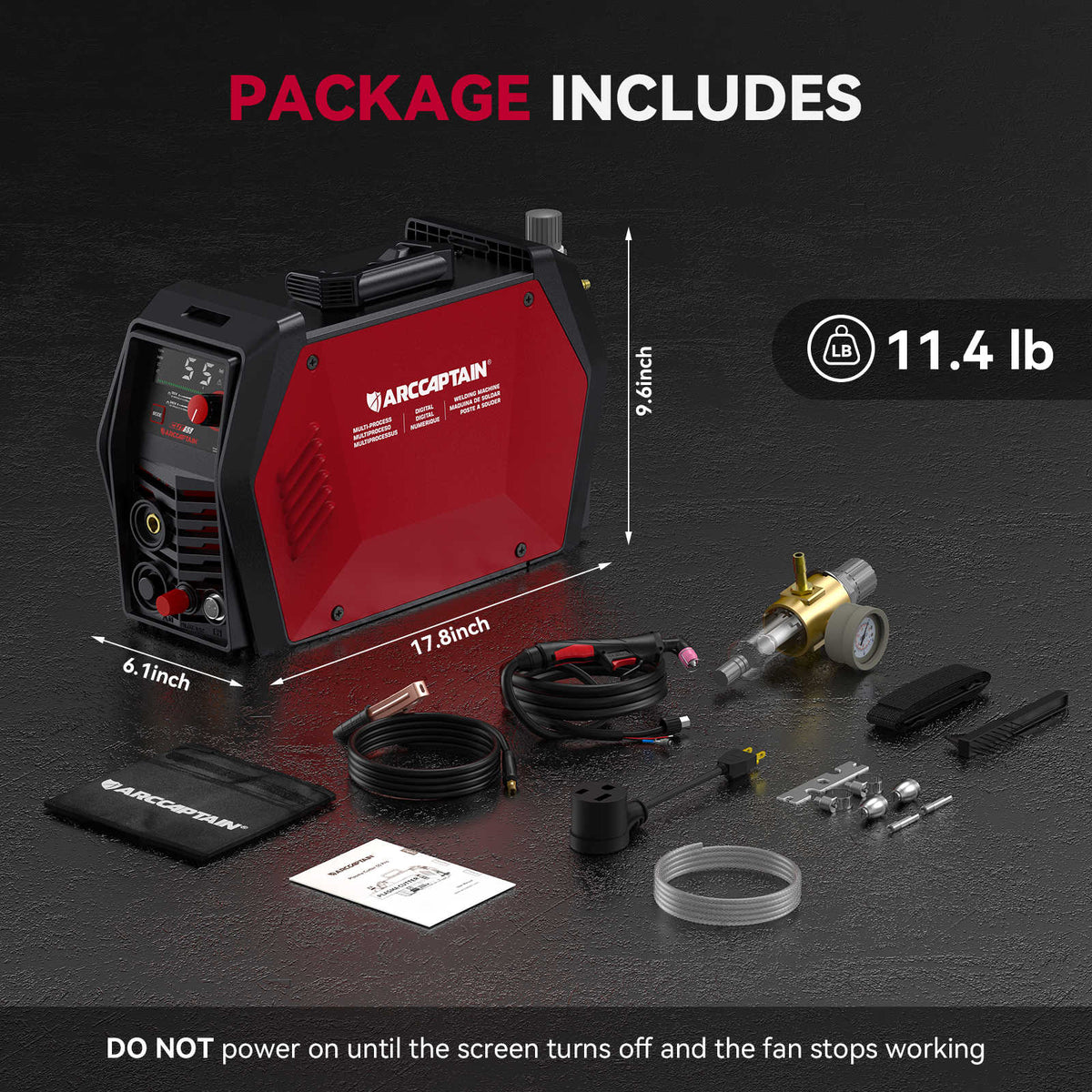

| Dimensions(L*W*H) | 17.8 in*9.6 in*6.1 in | |
| Weight (lb) | 11.5lb/5.2kg | |
