Arccaptain TIG Welding Torch Parts For TIG200/TIG200P

Features:

Complete TIG Torch Parts - This set includes all the essential TIG torch accessories and consumables, so you can get started on your welding projects right away.

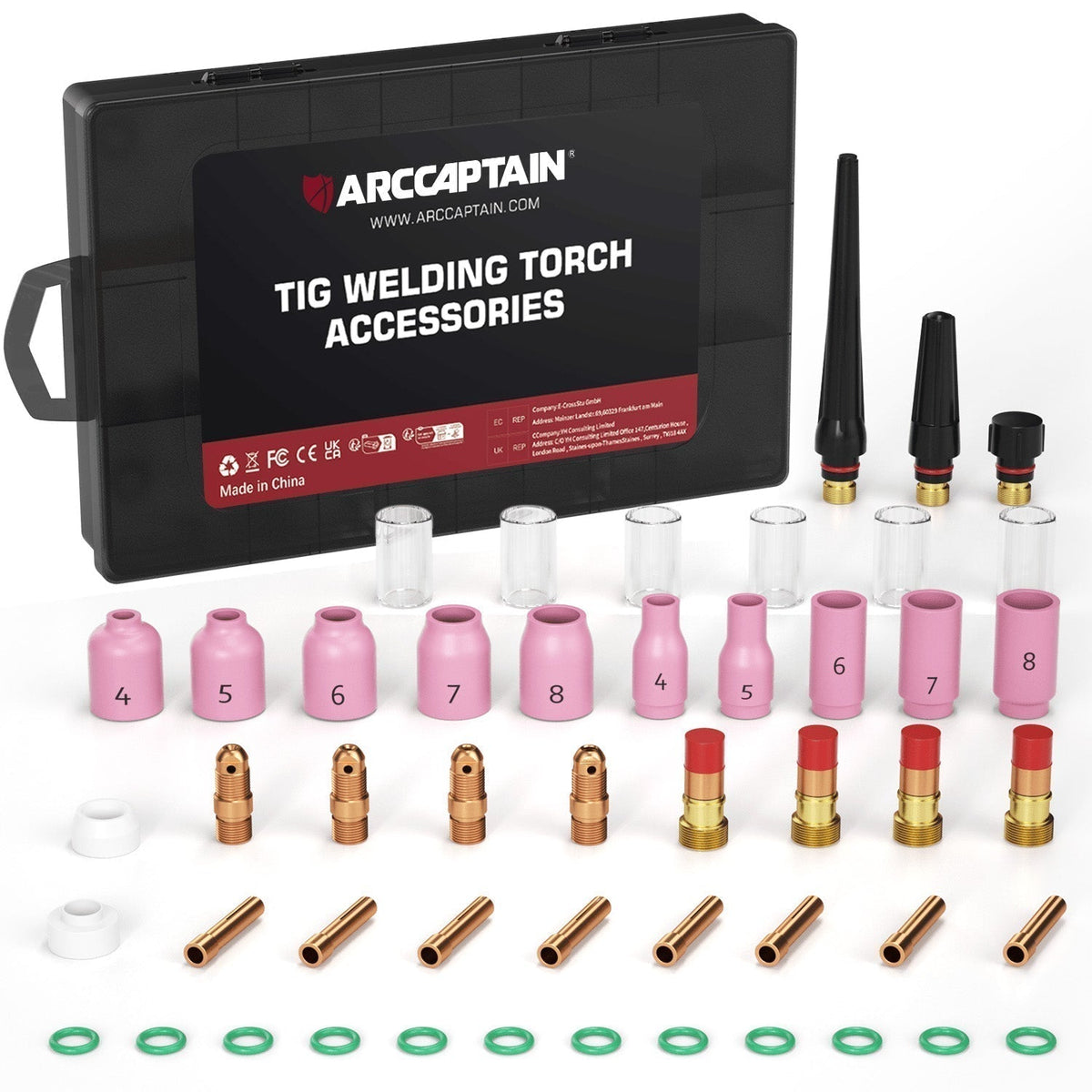

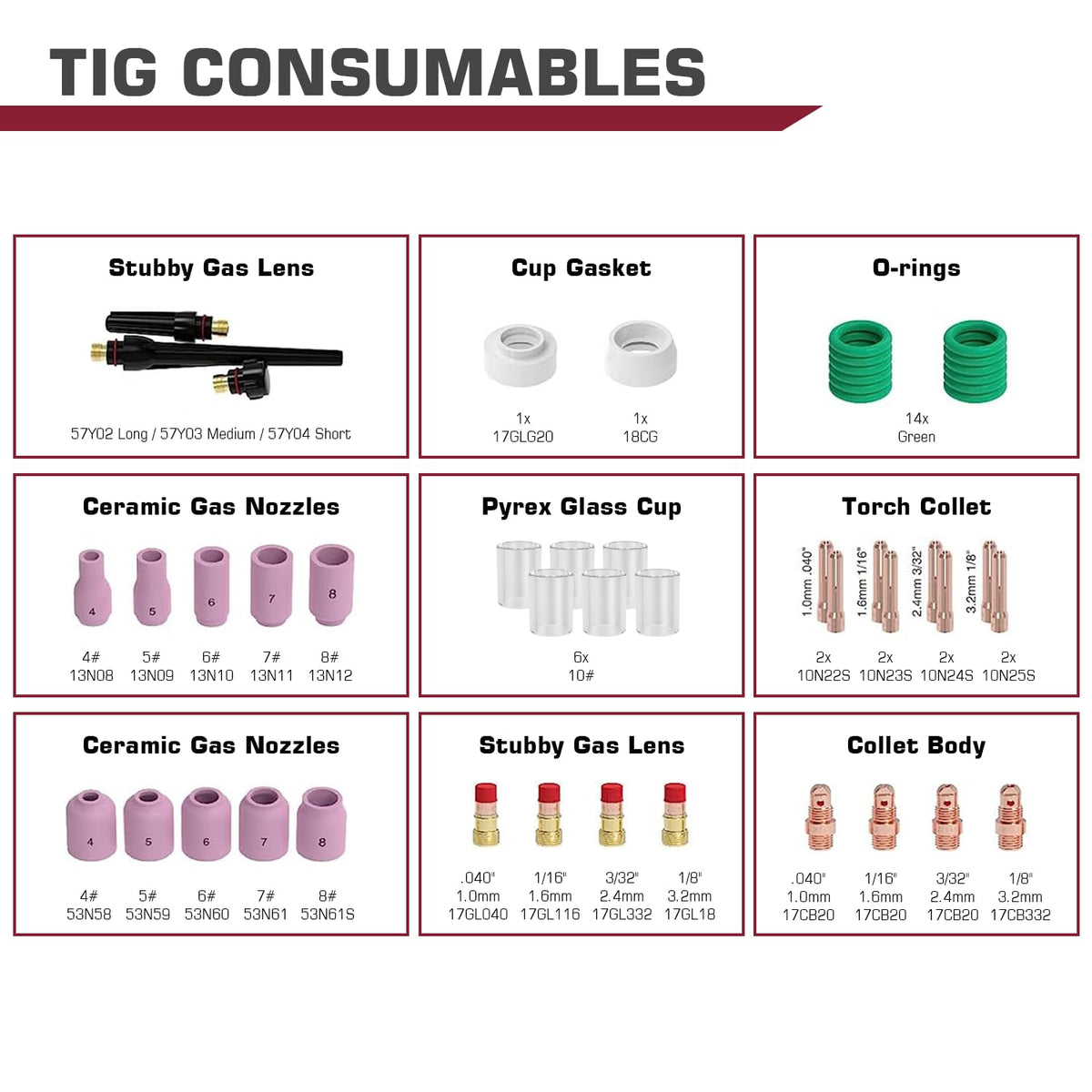

49pcs Tig Welding Torch accessories (consumables) kit

• Stubby Gas Lens: 57Y02Long/57Y03Medium/57Y04Short
• Cup Gasket: 17GLG20/18CG*1
• O-rings Green *14

• Ceramic Gas Nozzles: 4#13N08/5#13N09/6#13N10/7#13N11/8#13N12
• Pyrex Glass Cup: 10#*6
• Torch Collet: 10N22S*2/1ON23S*2/1ON24S*2/10N25S*2
• Ceramic Gas Nozzles: 4#53N59/5#53N60/6#53N60/7#53N61/8#53N61S
• Stubby Gas Lens: .040'' 1.0mm 17GL040/ 1/16''1.6mm 17GL116/3/32" 2.4mm 17GL332/1/8'' 3.2mm 17GL18
• Collect Body: .040'' 1.0mm 17CB20/ 1/16''1.6mm 17CB20/3/32" 2.4mm 17CB20/1/8'' 3.2mm 17CB332

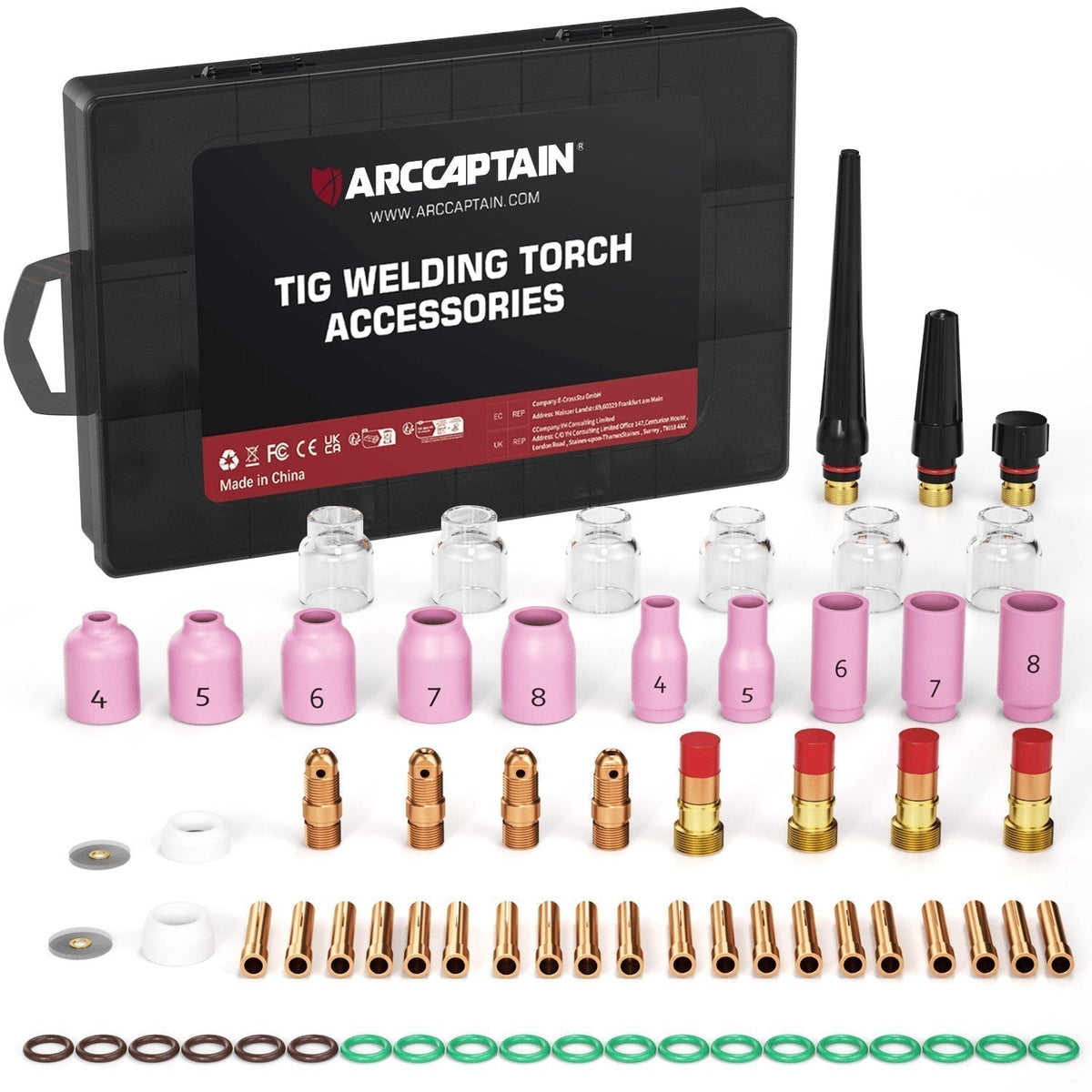

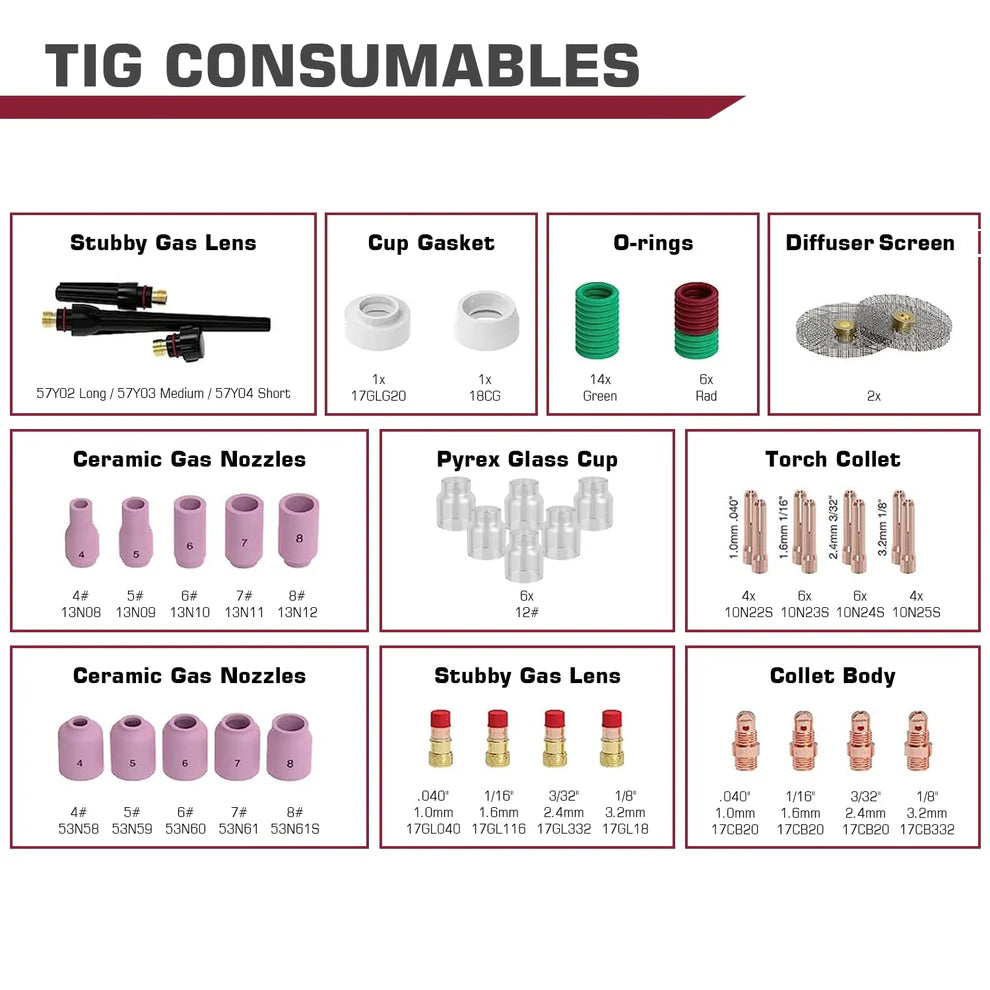

71pcs Tig Welding Torch accessories (consumables) kit

• Stubby Gas Lens: 57Y02Long/57Y03Medium/57Y04Short
• Cup Gasket: 17GLG20/18CG*1
• O-rings Green *14 O-rings Red *6
• Screen Diffuser *2

• Ceramic Gas Nozzles: 4#13N08/5#13N09/6#13N10/7#13N11/8#13N12
• Pyrex Glass Cup: 12#*6
• Torch Collet: 10N22S*4/1ON23S*6/1ON24S*6/10N25S*4
• Ceramic Gas Nozzles: 4#53N59/5#53N60/6#53N60/7#53N61/8#53N61S
• Stubby Gas Lens: .040'' 1.0mm 17GL040/ 1/16''1.6mm 17GL116/3/32" 2.4mm 17GL332/1/8'' 3.2mm 17GL18
• Collect Body: .040'' 1.0mm 17CB20/ 1/16''1.6mm 17CB20/3/32" 2.4mm 17CB20/1/8'' 3.2mm 17CB332

Compatible - This TIG torch accessories kit fits all 17 & 26 series air-cooled torches and 18 series water-cooled torches, including the ARCCAPTAIN TIG welding torches(quick connector 10-25mm/35-50mm/XS12-5P), Lincoln PTA-17, PTA-18, and PTA-26 torches, Miller Diamondback DB17, DB18 and DB 26 torches, along with the Weld craft WP-17, WP-18 and WP-26 torches.

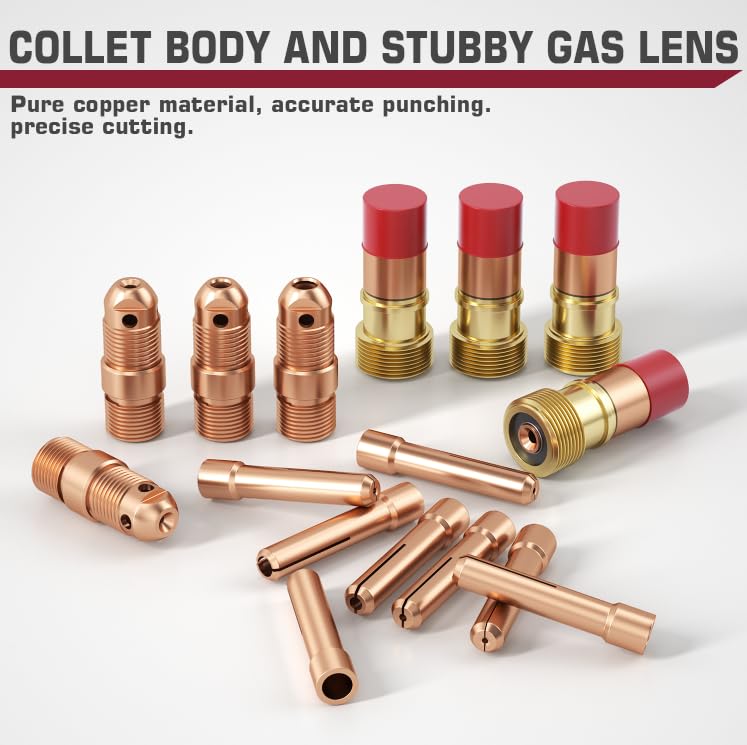

Highlights - Pure Copper Material, Accurate Punching, Precise Cutting. Electric conductivity is similar to a 2% thoriated tungsten electrode at either AC or DC. No need to change any welding program. With excellent plasticity, toughness, and crack resistance, especially low-temperature impact toughness higher.

Wide Application - WP-17 WP-18 WP-26 TIG Welding Torch, for many locations of the pipeline TIG welding arc welding and arc welding, can be welded carbon steel and some low alloy steel.

Note - The insulator rings can not match the CK Torch.
