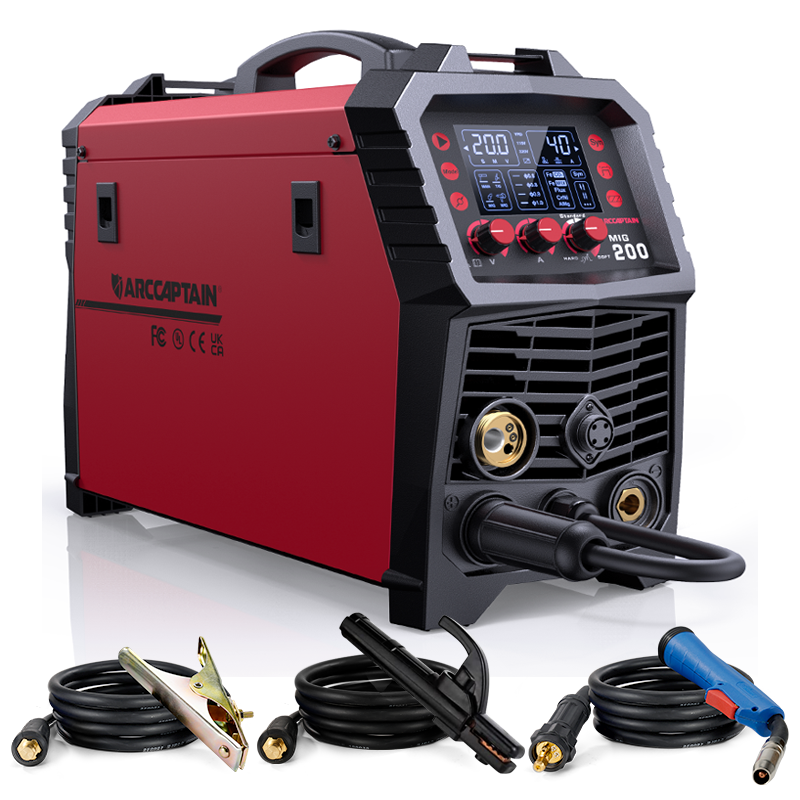

Used Multi Process MIG Welder Machine ARCCAPTAIN MIG200

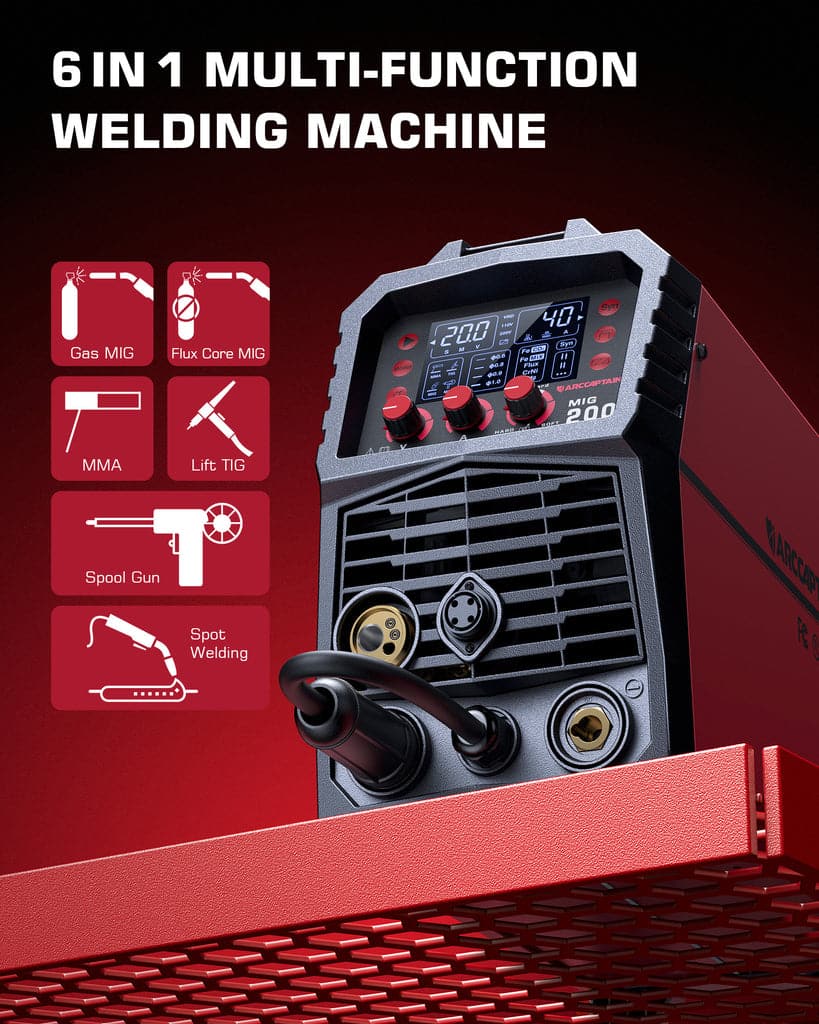

The Arccaptain MIG200 integrates the functions of stick welder, MIG welder, aluminum welders and lift tig welder, which is really a all purpose welder.
Check this related article: TIG Vs MIG Vs Stick.
Given its performance and affordable price, this welder is a real outstanding mig welder for beginner and professional welder.
All Arccaptain welding machines have passed strict quality tests before leaving factory.
Tips:
MIG200 supports WP-17V 35-50 style tig torch.
How to Setup Suitable Parameter for MIG200
If you need to weld aluminum by spool gun, please make sure the spool gun you buy matches our machine. You can read the article to know more info.
Specification
| Supply Voltage | 110V/220V 50/60 Hz |
| Output Current Under 110V(MIG) | 30A-160A |
| Output Current Under 220V(MIG) | 30A-200A |
| Output Current Under 110V(MMA) | 20A-135A |
| Output Current Under 220V(MMA) | 20A-180A |
| Output Current Under 110V(TIG) | 20-135A |
| Output Current Under 220V(TIG) | 20-200A |
| Rated Duty Cycle | 60% |
| Effciency(%) | 85 |
| Insulation Grade | H |
| Protection Degree | IP21S |
| Machine Weight | 12.8KG/28.2 lbs |
| Machine Size | 20.9"x8.5"x16.1" |
| Applicable Wire | 0.024"/0.030"/0.035"/0.039" |
| Applicable Electrode | Ø1.6-4.0 mm |
- Suitable for different size of wire：.023”/.030”/.035” solid wire, .023”/.030”/.035” flux core wire, .035”/.045” aluminum wire.

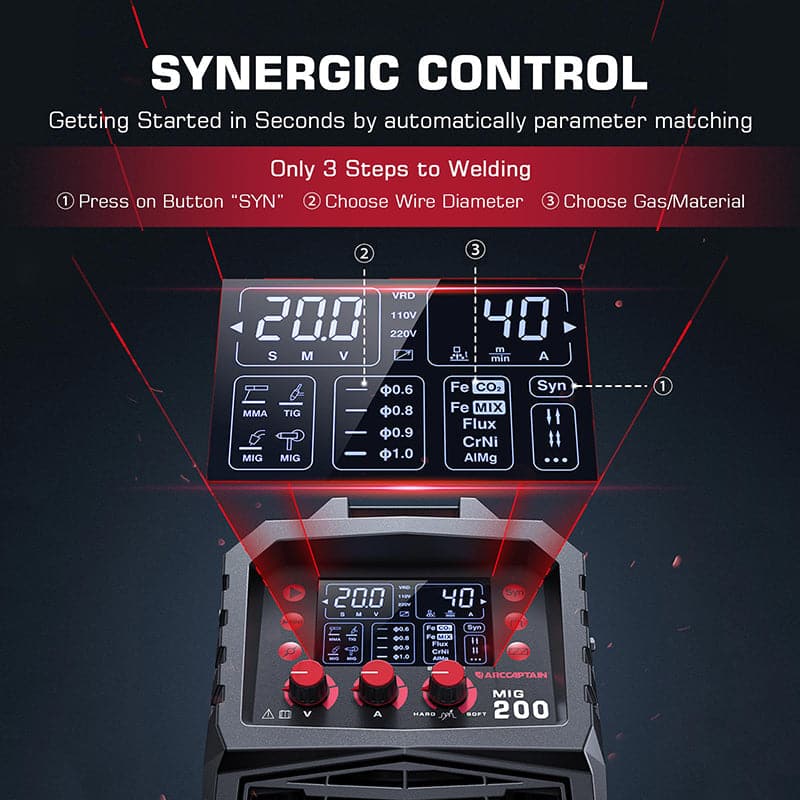

- Synergic Control: Match the recommend current and wire feeding speed when selected diameter of welding wire and gas material automatically.

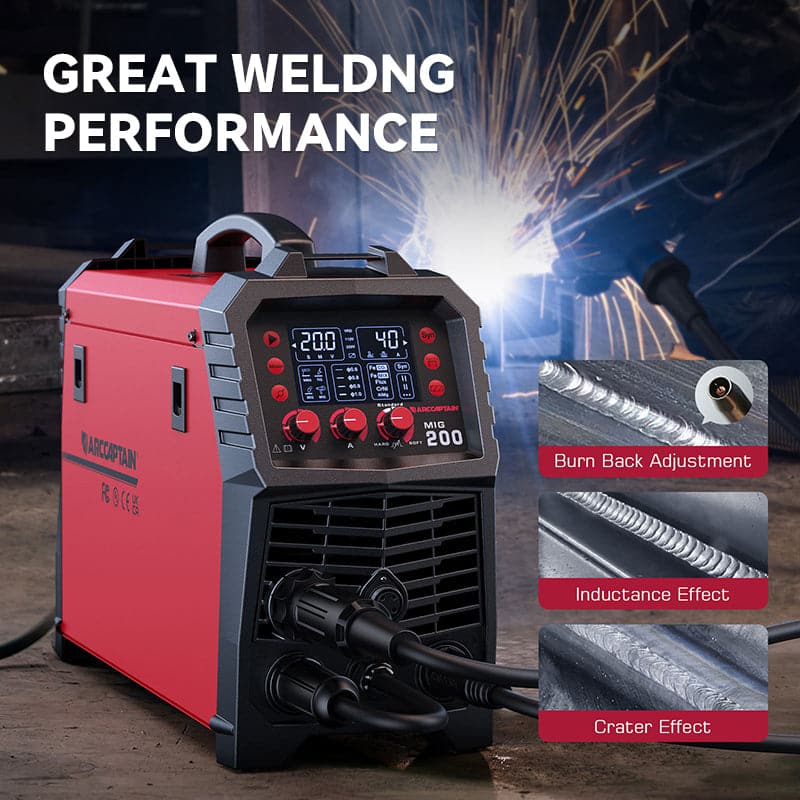

- Adaptive crater, Burn-back adjustment, pre-flow/post flow
- Arc force, Hot Start, Anti-stick : The stick welder mode was built-in arc force, hot Arc and anti-stick, easily start arc, more reliable and less spatter..
- Strict Quality Control-- All our welder machine was passed various authoritative Laboratory tests in simulating extremely harsh environments before leaves our factory that conform to the high standards.

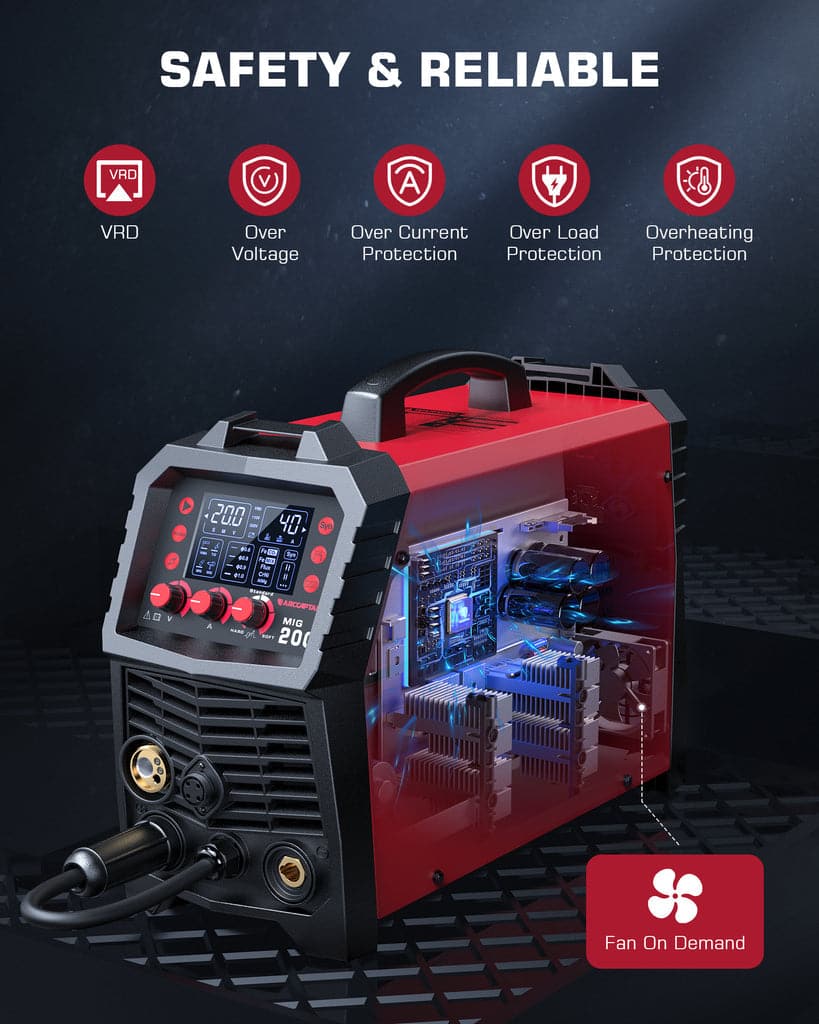

- Pay Attention to your Safety ：VRD, over current/over voltage/over current/over load/overheating protection function.
